Formulation of bio-based Ink
Derived chemically from plants
The raw material of Bio-based ink is come from renewable starch sugar such as castor, corn, sugarcane, and tapioca. The production process is clean and green.
- Bio-based
heat transfer
S.E.C. is proud that we can offer the Vegan Transfer with patent bio-based ink. The bio-based ink with new type of bio-based synthetic. The raw material is a bio-based elastic polymer with heat resistance, derived chemically from plants, and is invented and developed as eco-friendly materials for printing heat transfer with strong adhesion on garment, replacing conventional petroleum-based printing.
|
Tapioca
Sugarcane
Castor
Corn
Meet 2025 Industry Sustainability Target
Sustainable > 80% Less Carbon

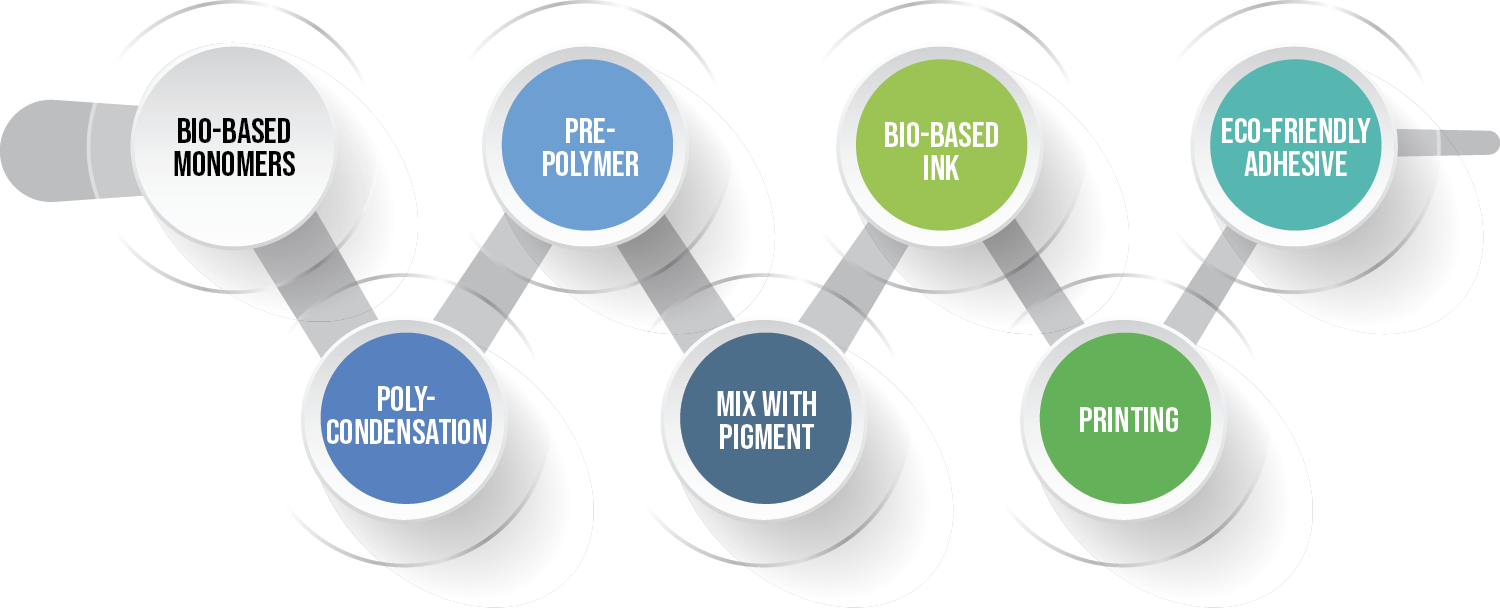

Bio-Based Monomer Turn into The Bio-based ink for screen print production

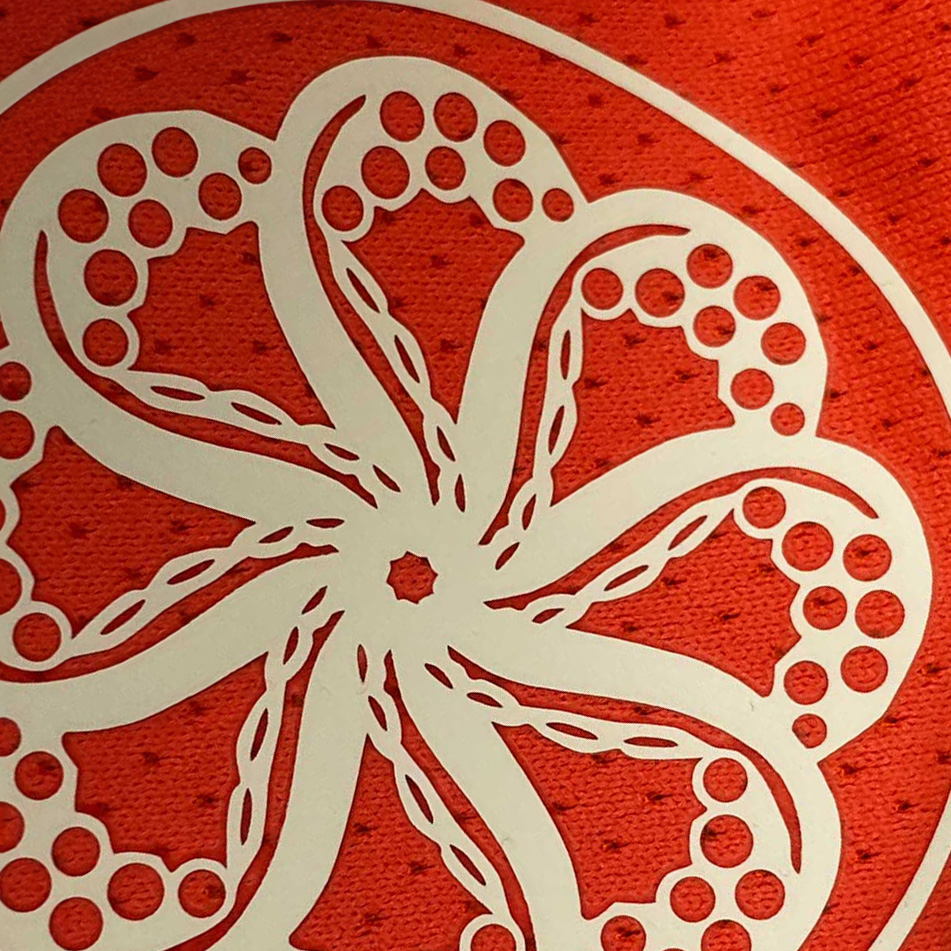

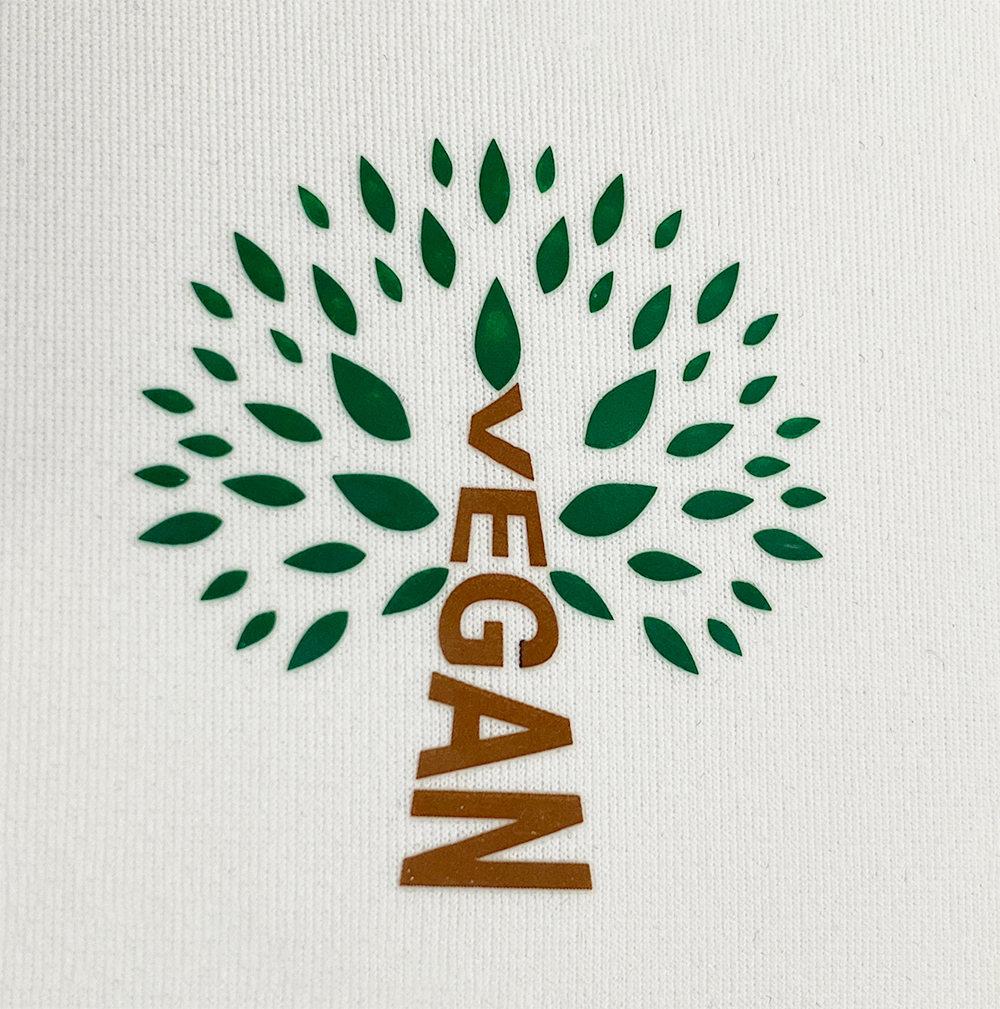

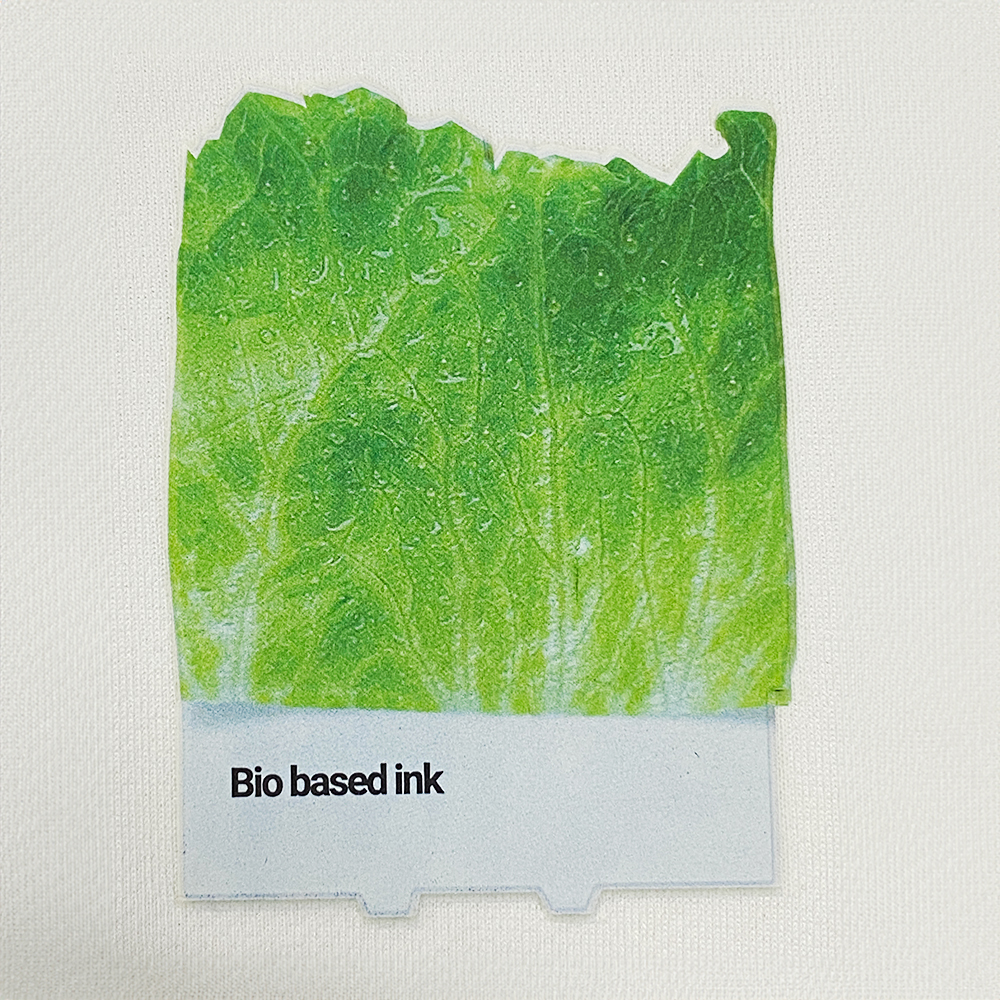

Form into Vegan Transfer
Bio-based test reports
The bio-based content was measured according to ASTM D6866 and was 93%. The test reported is shown as below.
Bio-Based Ink passed the REACH which is a chemical safety test.

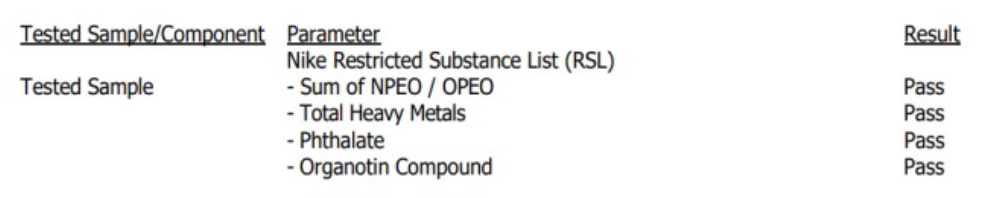

Eco-friendly adhesive passed the REACH which is a chemical safety test.
Washing test of Vegan Transfer
Vegan Transfer can pass 40 °C x 50 cycles & 60 °C x 10 cycles

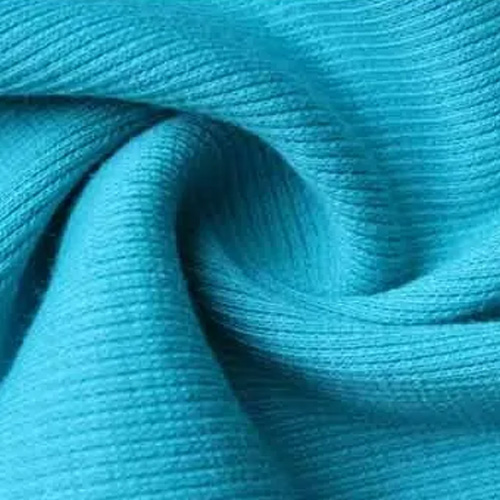

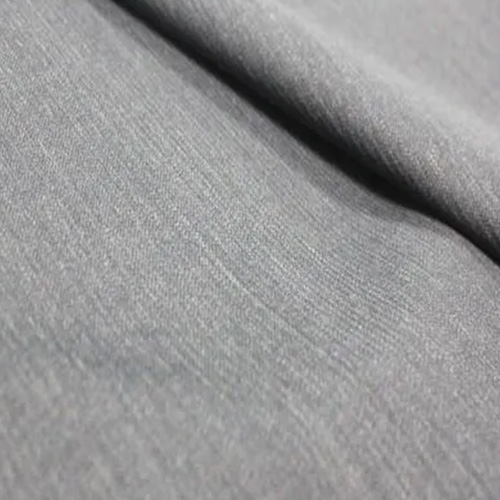

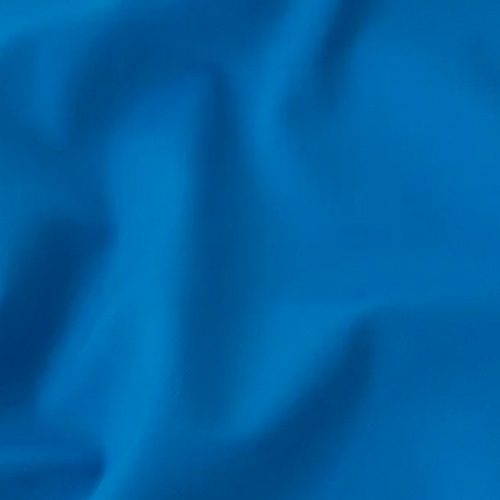

| Fabric |  100% cotton woven |  95% cotton +5% Spandex knit |  65% polyester Cotton woven |  87% Nylon +13% Spandex knit |
| Dimensional change (Without washing as control) | -5% - +2% Average -2% | -5% - 0% Average -1% | -7% to 3% Average -2% | -8% to 7% Average 2% |
| Dimensional change (Without logo as control) | -8% - +5% Average -2% | -8% - +2% Average -3% | -2% to 0% Average -1% | -3% to 2% Average 0% |
| Peel off (Detachment) | No | No | No | No |
| Pass | Pass | Pass | Pass |
In-house washing test:
By using 60ºC machine wash and tumble dry x 10 cycles Result: No peel off, cracking, shrinkage, wrinkle and color migration. Washing test report of sponsor’s in-house washing test. Testing item was fabric adhered with bio-based heat transfer prepared by bio-based printing ink and eco-friendly adhesive.
Energy Saving with Microwave Curing
The production process of heat transfer is also energy consuming because it requires multiple layer, printing and oven drying and curing is required after printing each layer. Large amount of energy is consumed in the whole process. In order to reduce the amount of energy use, microwave will replace thermal as the heating source in the process of drying and curing.
Comparison between of thermal & microwave curing
Drying and curing at 80°C
It can be 50-80% more energy efficient.
It can be 50-80% more energy efficient.
| Heating equipment | Thermal oven | VFM oven | Energy saved |
| White ink Energy con. (kWh, h) | 0.16, 1h 0.63, 4h | 0.055, 1h 0.17, 3h | 66% 72% |
| Transparent ink Energy con. (kWh, h) | 0.16, 1h | 0.055, 1h | 66% |
| Red ink Energy con. (kWh, h) | 0.16, 1h | 0.085, 1h | 47% |
| Blue ink Energy con. (kWh, h) | 0.16, 1h | 0.085, 1h | 45% |
| Yellow ink Energy con. (kWh, h) | 0.39, 2.5h | 0.23, 2.5h | 40% |
| Black ink Energy con. (kWh, h) | 0.16, 1h | 0.077, 1.5h | 52% |
| Red ink Energy con. (kWh, h) | 0.47, 3h | 0.034, 3h | 93% |

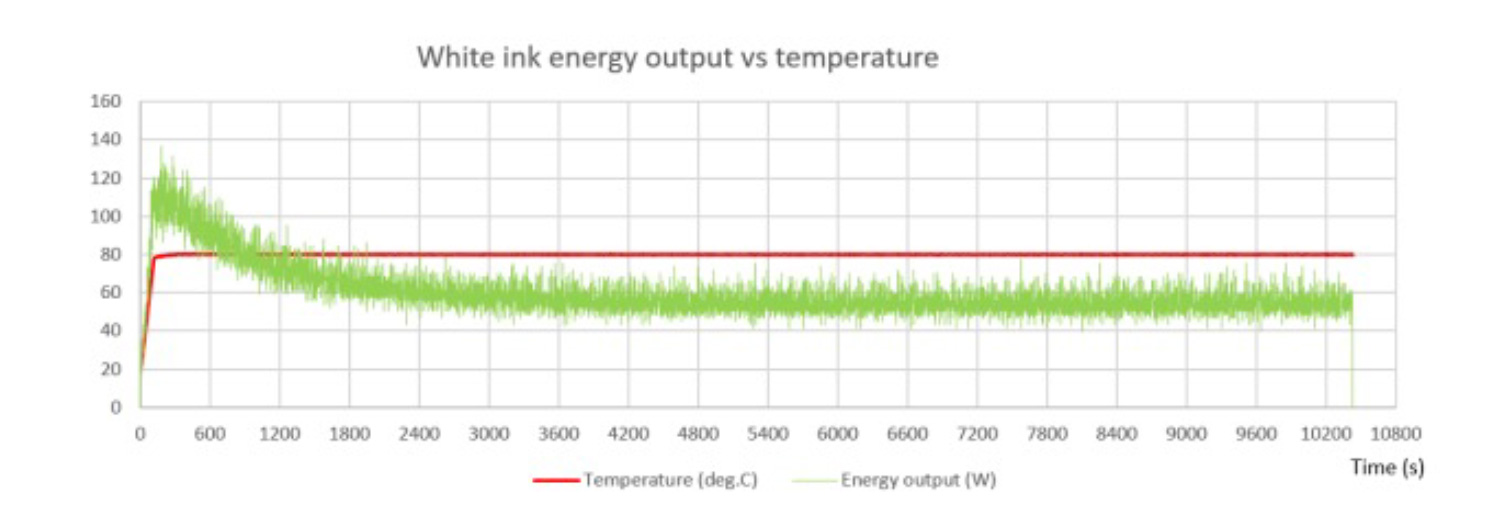

It shows a typical graph of energy output for drying and curing bio-based ink by microwave curing
